• Newly upgraded compression laser: Newly upgraded ultra-fine compression laser: The laser adopts 4-fold lens group collimation and focus technology
• Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving; the new laser focal spot is 50% smaller than other ordinary lasers

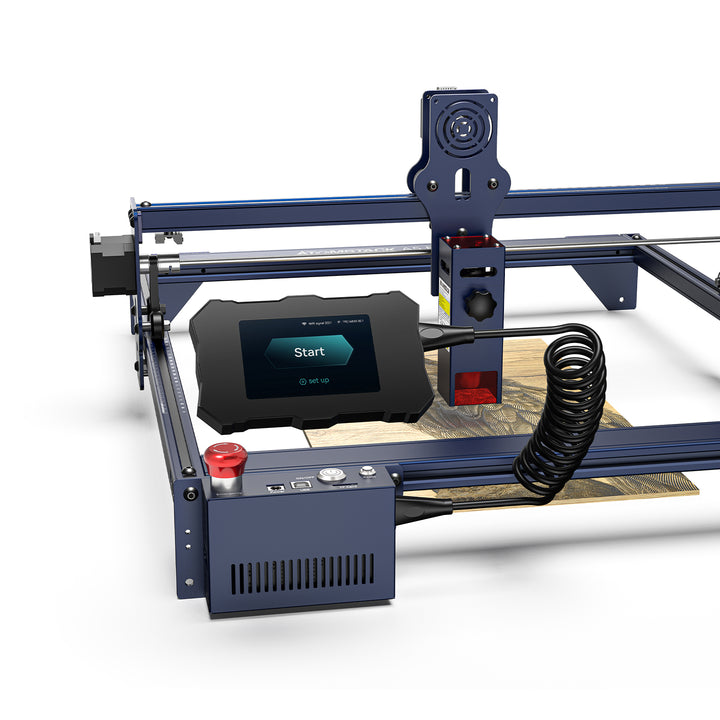

• Separated they live in Bookmarksgrove right attr.Support offline engraving: configure the terminal control panel, support offline engraving
• The laser sintering temperature is up to 800~850℃

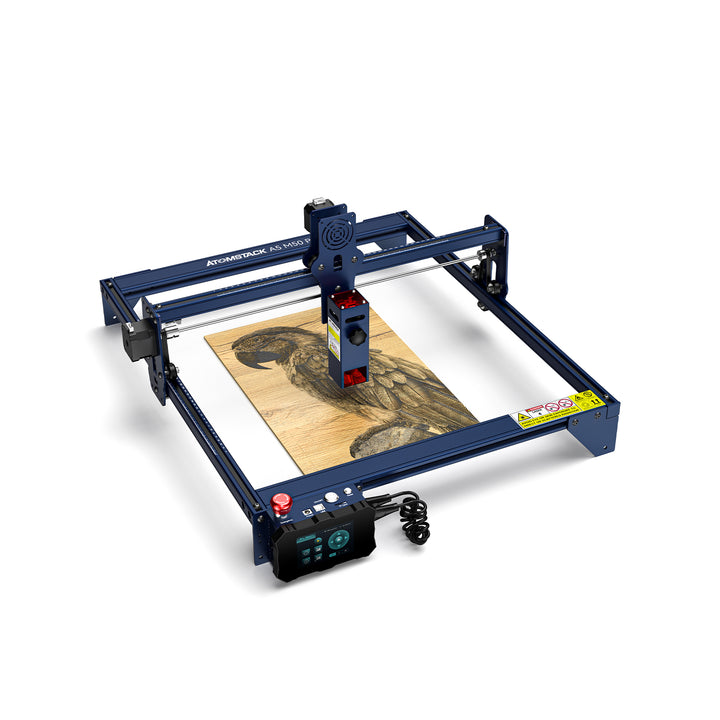

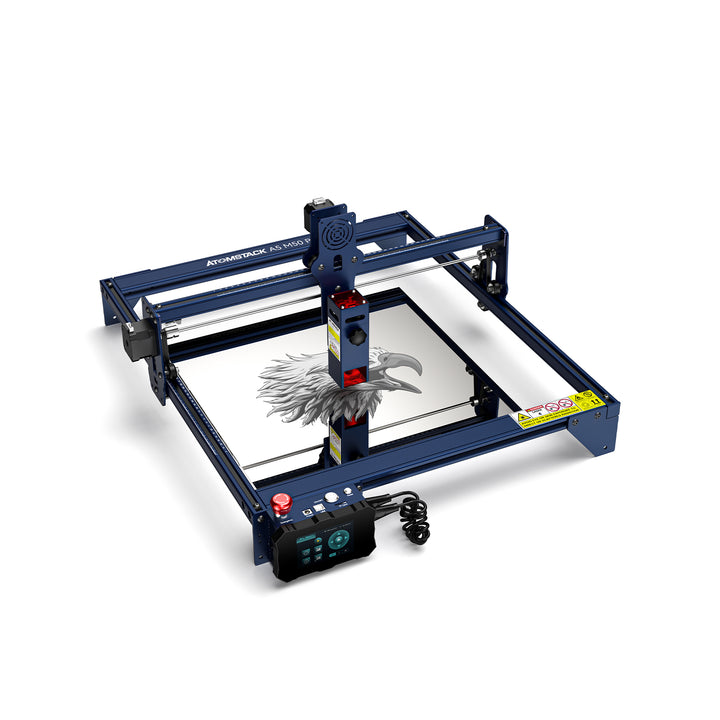

Item model number	ATOMSTACK A5 M50 PRO
Engraving area	410*400mm
Laser power	40W
Laser output power	5-5.5W
Wave Length	445 ± 5nm
Engraving accuracy	0.01mm
Focusing method	fixed focus laser, no need to focus
Carving materials	wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel;
Cutting material	cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather;
Laser protective cover	Protect the user's eyes and prevent pets from grabbing the laser spot
Operating software	LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system
Input Format	NC,BMP,JPG,PNG,DXF,etc
Data transmission method	USB connection
Input Voltage	AC100-240V, 50/60Hz
Output Voltage	DC12V,5A
Equipment net weight	3.426kg
Package weight	5.072kg
Equipment size	570*600*270mm
Packing size	620*345*130mm
Certification	CE FCC RoHS FDA

LASER ENGRAVER PACKAGE:

1 × mounting screw 1×tool kit 4×Foot pad foam 1×Film 3×Acrylic sheet 3 × wood chips 10×Wire tie 1×desiccant 1×brush 1×Clean cloth 1×card reader 1×TF card 1×power adapter 1×Instruction 1×data line 1×Touch screen components 1×HDMI cable 1×laser module 1×cutting pad 1×X axis assembly 1×Y axis left profile 1×Y axis right profile 1×Profile on the base 1×Under the base profile 3×foot bracket
